Energic 4RM35 (1976/77).

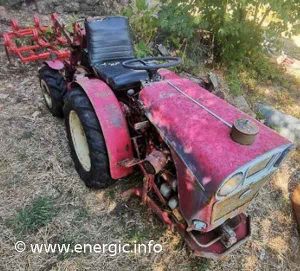

Energic 4 RM 35 tracteur 1500cc Slanzi moteur.
This is the second generation Energic 4 RM 28 (which now has an uprated 35 cv engine from the previous 1330 cc Slanzi 2 cylinder moteur). Available from the mid-1970s, as the requirement for more power due to the trend for larger fields on small to medium sized farms. It offered greater stability, with a reduced turning circle, 1.35m, compared with a small/medium tracteur. The 4 wheel drive system offered a greater proportion of power coping with the most field, hill situations.
Engine/ Moteur. Slanzi Diesel 1500cc, 28 cv, bi cylinder, 4 stroke, 4 wheel drive. Oil lubrication by pump,with fuel filters.

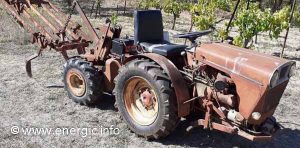

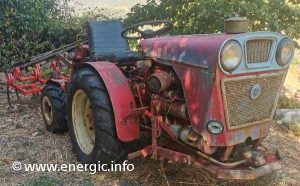

Energic 4 RM 35 tracteur 1500cc Slanzi moteur.
Read more about Slanzi engines/moteurs in Energic tracteurs, motoculteurs here.

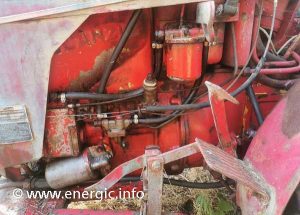

Energic 4RM35 tracteur engine/moteur.
Speed in gears; 1 – gear 2.816km/h, 2 – 3.876km/h, 3 – 5.639km/h, 4- 8.203km/h, 5- 11.279km/h, 6 – 16.409km/h.
Dimensions; width min., 0.76m, length 2.85m.
Wheels; front 650 x 16 or 750 x 16, rear 650 x 16 or 750 x 16.
Weight; 1254 kgs.
Fuel tank capacity; 7.5 ltr.
Air filter; In a bath of oil.
Clutch; Dry single disc type.
Gears; 6 speed forward, 3-speed reverse, steering pivot within the wheels, maximum 60 degrees, turning circle just 1.30 meters. Drive direct to the front wheels, with a connecting shaft to the rear wheels. Differential blockable.
Energic 4 RM 35 tracteur 1500cc Slanzi moteur showing hinge .
Hitch; Multifunctional rear couplings from trailers to equipment.
PTO; 3 PTO’s/Prise de forces, available in all gears. Forward PTO’s options operated directly from the gearbox. There was also the option of an intermediate PTO. The third PTO was situated at the rear. The PTO was available in all 9 gears to a max.@ 2000 t/m. With the tracteur moving;1st gear 270 turns/minute t/m, 2nd gear 372 t/m, 3rd gear 540 t/m, 4th gear 800 t/m, 5th gear 1080 t/m, 6th gear 1520 t/m. Tracteur stationary; 1st gear 790 t/m, 2nd gear 1085 t/m and 3rd gear 1580 t/m.
Brakes; Front within the wheel, with hand-operated brake for each front wheel to help in manoeuvrability.
Electrics. With dynamo, starter, battery 12v 50amps., lights front and back, and plug for trailers sockets.
Hydraulic lift; With a lift max. the force of 4 tons, Manuel adjusters for hydraulic, operation of the hydraulics from the instrument console.
Energic 4 RM 35 tracteur 1500cc Slanzi moteur from the seat driving position and instruments.
Seat; Height (0.80m) and pitch adjustment, height bonnet 1m.
Oil Capacity. Gearbox 11 litres, Pont 12 litres and Pont rear 6 litres.
***Energic 4 RM 35 implements/equipment***
Energic 4 RM 35 with cultivateur implement.
Energic 4 RM 35 with cultivator implement.
Energic 4 RM 35 tracteur 1500cc Slanzi moteur ensemble inc hoe.
Energic 4 RM 35 tracteur ready for renovation and work.
Gallery
****Implements/outils for the 4 RM range****
Energic 4 RM tri-soc plough (or 4 soc possible).
Energic 4 RM with Brabant plough No. 3. 1/4 turn.
Energic 4 RM equipped with a Srayer system/Pulvérisateur capacity of 200 litres.
Energic 4 RM equipped with a trailer/remorque on articulation.
Energic 4 RM equipped with an agricultural trailer/remorque on articulation.
Other implements available; ploughs, cultivators, hoes, rotavator/fraise rotative, grass cutter/barre de coupe, poulie etc.
****Energic Tracteur 4 RM in action, in the field, vine period photo 1960’s****
Energic 4 RM working in the vines.
Energic 4 RM turning circle in working conditions.
Energic 4 RM working in a Nursery/Pepinière with a 1-meter implement.
Energic 4 RM working within a 2-meter width orchard.
Energic 4 RM ploughing with a Brabant reversible plough.
Gallery;
*******
